Computer Workstations

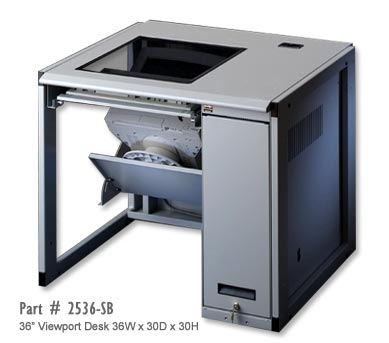

The innovative Viewport Desk was designed to help the U.S. Navy house its sophisticated computer equipment in a secure environment. The Desk is equipped with EDP’s patented Viewport system allowing operators to work in an ergonomic environment. The Viewport design securely houses the computer inside the desk, providing greater flexibility and more workspace. The Viewport Desk can be ordered in a variety of sizes, creating the precise solution for safely securing equipment.
 |
 |
EDP’s Viewport - a tinted, tempered 1/4” thick, 18”w x 18”h glass viewport, allows for proper ergonomic viewing angles. |
|
 |
Up to a 17” monitor stores underneath the worksurface in an adjustable monitor bucket. |
|
 |
Lock-in, pull out* keyboard drawer accepts keyboards up to 23”w x 10”d.
|
|
 |
Optional built-in shipboard command center surge suppressor offers surge protection, noise filtration, and power control for a ship’s unique electrical power. |
|
 |
Locking three drawer pedestal – features a lock-in mechanism with thumb latch and three lockable drawers for storage. |
|
 |
Locking CPU Pedestal – receding lockable door, CPU tie-down straps, and vents for ventilation. The pedestal accepts maximum CPU size of 9 1/4”w x 29”d x 24”h. |
|
 |
L-Connectors – provide security in adverse conditions allowing for a bolted or welded connection directly to the deck. |
|
 |
Optional Flat Panel Display mounting device. Fits easily under the ViewPort surface for flat panel viewing vs. standard CRT monitors |
|
